AutoCAD Settings

Pen
Color
Thick
Thin
Prints

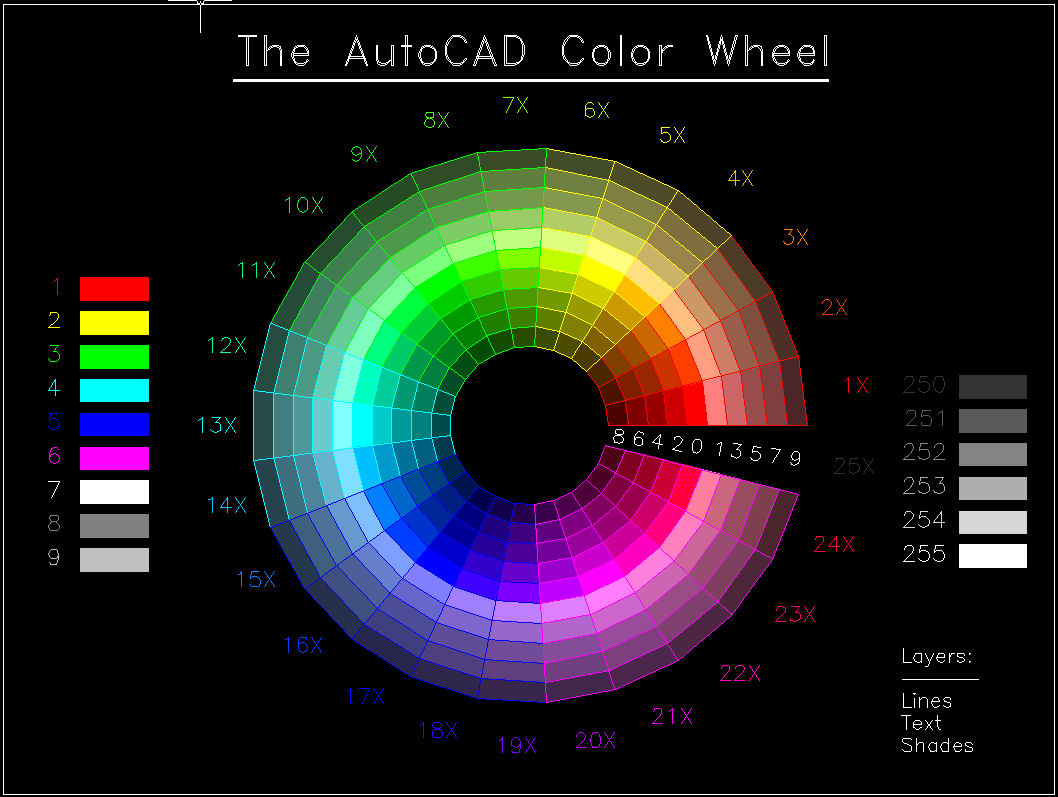

Palette Color Range
 Exceptions
1
Red
.160
.040
Color Single Color Pen Color Width Usage
2
Yellow
.250
.100
Black Single Color 8 Black - Border Text
3
Green
.250
.100
Color Single Color 9 Black - Border Text
4
Cyan
.160
.040
Black Single Color 40 Black .500 BText
5
Blue
.250
.100
Color Single Color 50 Black .350 Text
6
Magenta
.160
.040
Black Single Color 51 Black .350 Note
7
White
.500
.200
Black Single Color 132 Black .700 Border
8
Dk, Gray
.250
.100
Black Single Color 174 Color .150 Construction
9
Lt, Gray
.250
.100
Black Single Color
Pen
Color
Thick
Thin
Prints Palette Color Range Usage
xx0
Various
.250
.100
Color Bright Color - Lightest Primary Object / Text
xx1
Various
.250
.100
Color Pastel - Lightest Secondary Object / Background Object
xx2
Various
.350
.150
Color Bright Color - Medium Color Primary Object
xx3
Various
.150
.040
Color Pastel - Medium Color Secondary Object / Background Object
xx4
Various
.500
.200
Color Bright Color - Medium / Dark Color Primary Object
xx5
Various
.250
.100
Color Pastel - Medium / Dark Color Secondary Object / Background Object
xx6
Various
.700
.200
Color Bright Color - Dark Color Primary Object
xx7
Various
.150
.040
Color Pastel - Dark Color Secondary Object / Background Object
xx8
Various
.350
.150
Color Dark Color, Almost Black Misc
xx9
Various
.150
.040
Color Dark Pastel, Almost Black Misc
